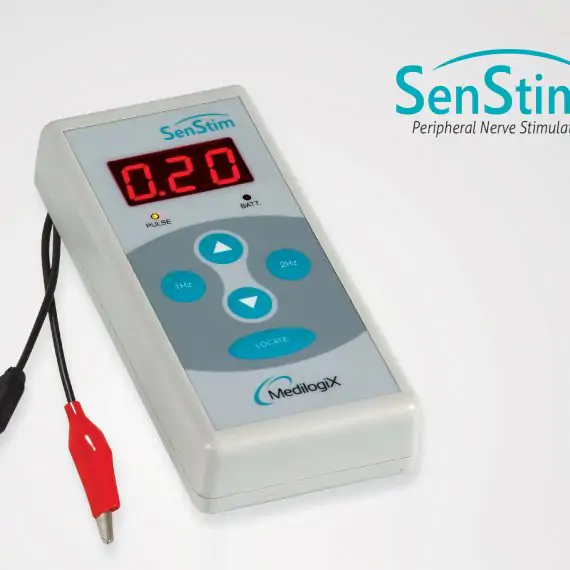

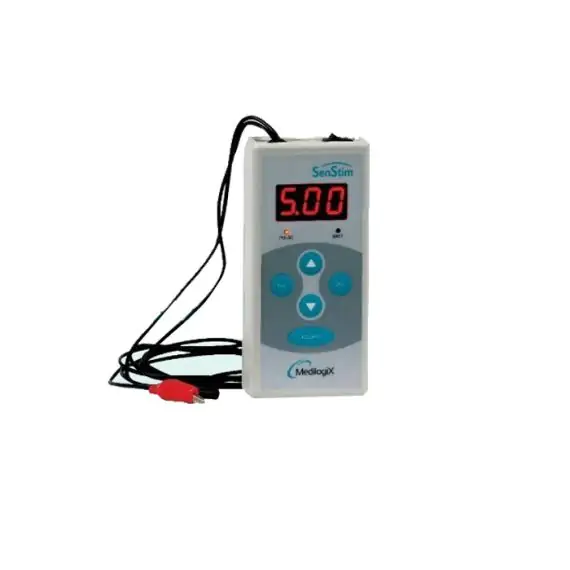

Medilogix Senstim Peripherial Nerve Stimulator

Name: Medilogix Senstim Peripherial Nerve Stimulator
SKU: SF87456470-132
Availability: InStock

₹30,940.00~~₹45,000.00~~

The Medilogix Senstim is a peripheral nerve stimulator that is compact, lightweight, and user-friendly. It is a constant current stimulator that has a large 7 segment LED display, a digital display, and a battery LED.

SKU:

SF87456470-132

Description

Senstim Peripherial Nerve Stimulator Features:

Digital Display: Displaying the Impulse current from 0.20 to 5.0mA Pulse LED (Yellow) indicates that the device is ready.

Battery LED: Indicates low battery & battery should be replaced.

Frequency: The frequency can be toggled between 1Hz and 2Hz by holding the concerned key for 2 sec. The default frequency is 1Hz.

Beep Tone: Beep Tone is heard briefly during Self Test and after that it is triggered only when the circuit is closed.

Senstim Peripherial Nerve Stimulator Specifications:

Pulse Amplitude : 0.2mA to 5.0mA
Pulse Width : 0.1m sec
Pulse Frequency : 1Hz or 2 Hz switchable (Default 1 Hz)
Impedance : 0 to 5K Ohms
Display : 3 Digit 7 segment large display
Resolution : 0.01mA or 0.1mA
Battery : 9V, Type 6LR–61 or 6F22
Indication : Red LED flashing indicates battery. Yellow LED flashing with beep sound for delivery of each pulse when the circuit is closed.
