Contec CMS6800 Patient Monitor

Name: Contec CMS6800 Patient Monitor
Brand: Life Omic
SKU: SF11335696210-6-89
Availability: InStock

Brands: Life Omic

₹27,180.00~~₹30,990.00~~

Contec CMS6800 Patient Monitor – Advanced 8-inch TFT display, multi-parameter monitoring (ECG, SpO2, NIBP, TEMP, RESP, PR), real-time waveform display, alarm system, and data storage for hospitals & clinics.

3 in stock

SKU:

SF11335696210-6-89

Brand: Life Omic

Brands:: Life Omic

Description

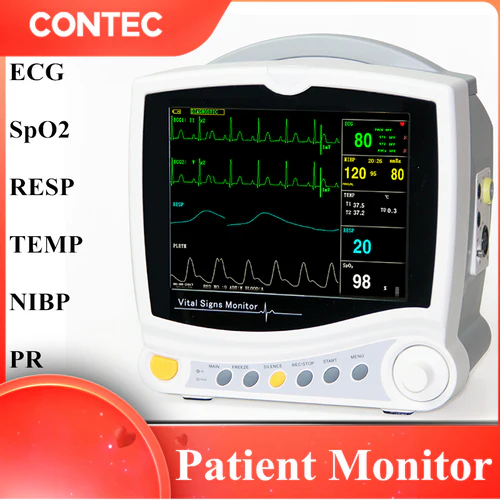

The Contec CMS6800 Patient Monitor is a versatile device designed for comprehensive monitoring of adult, pediatric, and neonatal. Below are its key features and specifications:

Key Features:

Display: 8-inch color TFT LCD screen showing real-time data and waveforms.
Monitoring Parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP.
Waveform Display: Simultaneous display of up to eight-channel waveforms.
Alarm System: Audible and visual alarms for critical parameters.
Data Storage: Trend data storage and output capabilities.
Power Supply: Operates on AC power (100-240V~, 50/60Hz) with a replaceable internal battery for portability.

Specifications:

Parameter	Details
ECG	Lead Modes: 3-lead or 5-lead
	Lead Selection: I, II, III, aVR, aVL, aVF, V
	Gain: 2.5, 5.0, 10, 20, 40 mm/mV
	Scanning Speeds: 12.5, 25, 50 mm/s
	Heart Rate Range: 15–350 bpm
	Accuracy: ±1% or ±1 bpm, whichever is greater
RESP	Method: RA-LL impedance
	Respiration Rate Range: 0–150 rpm
	Accuracy: ±2 rpm
SpO2	Measurement Range: 0–100%
	Accuracy: 70–100%: ±2%; 0–69%: unspecified
PR	Range: 30–250 bpm
	Accuracy: ±2 bpm or ±2%, whichever is greater
NIBP	Method: Oscillometry
	Modes: Manual, Auto, Continuous
	Measurement Range: 10–270 mmHg
	Accuracy: ±5 mmHg (mean deviation); 8 mmHg (standard deviation)
TEMP	Channels: Dual
	Range: 0–50°C
	Accuracy: ±0.1°C
Dimensions	319 mm (L) × 161 mm (W) × 269 mm (H)
Weight	3.6 kg
