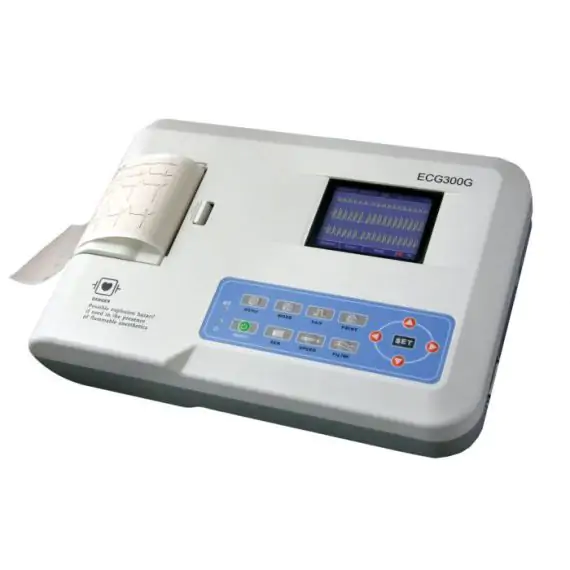

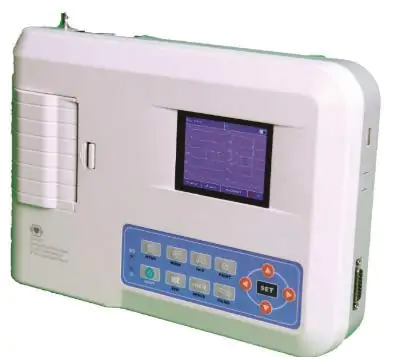

Contec 3-Channel ECG Machine 300G

Name: Contec 3-Channel ECG Machine 300G
Brand: Bionet
SKU: SF11335696210-6-141
Availability: InStock

Brands: Bionet CONTEC

₹25,300.00~~₹68,000.00~~

Contec 300G 3-channel ECG machine is most widely used ECG machines in hospitals.

3 in stock

SKU:

SF11335696210-6-141

Brand: Bionet, CONTEC

Brands:: Bionet , CONTEC

Description

Contec 3-Channel ECG Machine 300G is a electrocardiogram device which uses 12 leads ECG signals simultaneously and print out the ECG waveform with thermal printing system.

Key Features of Contec 3-Channel ECG Machine 300G:

12-lead ECG signal and print waveform by the thermal printing system.
5.5″TFT Color LCD Screen.
Self Interpretation
Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc, for easy interpretation.
Support recording and displaying ECG waveform in AUTO/Manual mode
Alarms for “Lead off” and “absence of paper”
Patient case database history management.

Specifications of Contec ECG 300G 3 Channel ECG:

Product Name	Contec 300G 3 Channel ECG Machine
Brand	Contec
Model	300G/300GA
ECG Type	3 Channel ECG with interpretation
ECG Channel	3 Channel
ECG Storage	Up to 1000 patent’s data
ECG Record mode	Auto and Manual
Display	YES
ECG Paper	80 mm(Width) ECG paper
Battery	Built-in Rechargeable Battery
Battery Backup	Approx 1.5 hours with continuous printing
Waterproof Degree	IPX0

Documents of Contec ECG 300G 3 Channel ECG:

Contec 300G ECG Brochure.PDF

Contec 300G 3-Channel ECG Box Contents:

Lead Cable
Limb Electrodes
Set Of Chest Electrodes
Thermal Recording Paper
Power Cord
Earth Wire
User Manual

Frequently Asked Questions:

Q. How many channels are supported by Contec 300G ECG Machine?

A. Contec 300G is a 3 channel ECG machine.

Q. Does Contec 300G ECG Machine supports self-interpretation?

A. Yes, Contec 300G supports self-interpretation to help healthcare professionals with easy diagnosis.

Q. What size of paper is used in Contec 300G ECG Machine?

A. Contec 300G supports paper with width of 80mm. This paper is easily available on leading online stores.

Q. Does Contec 300G ECG Machine have battery backup?

A. Yes, Contec 300G ECG Machine comes with pre-installed battery with backup of ~1.5 hrs.

Q. What all is included in the box of Contec 300G ECG Machine?

A. Contec 300G machine comes with chest bulbs, limb electrodes, 12-lead ECG cable, paper roll, manual, power cable & earth cable.

Q. What all printing modes are available in Contec ECG Machine?

Contec ECG has Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements.

With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1).
